Renovation of an office

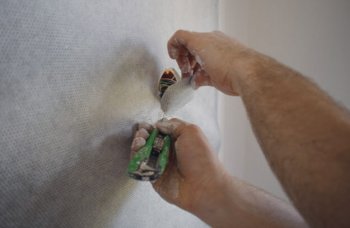

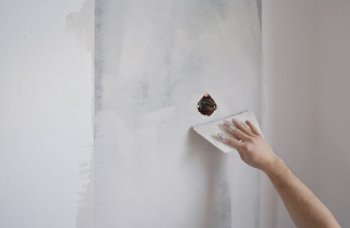

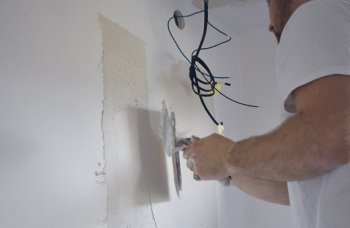

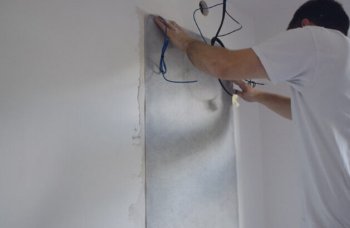

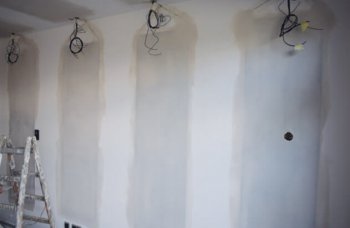

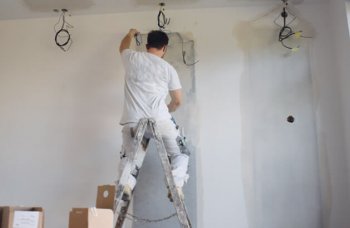

In an office building in Vehrte, an existing office was renovated, thus increasing the internal consumption of the existing PV system. A total of 8 heating foils of 2 m each were installed in the wall in a 21 m2 room. The E-NERGY CARBON FLEECE system was used.
| Surface heating system | E-NERGY CARBON FLEECE |
| Ceiling area | 21 m2 |
| Area | Ground floor |
Heating

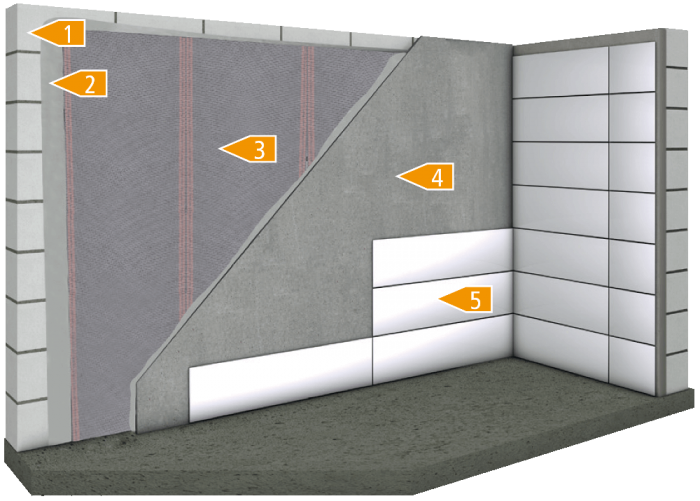

Wall
| 1 | Raw wall | |
| 2 | Putty | 1 mm |
| 3 | Heating foil E-NERGY CARBON FLEECE | 0,4 mm |
| 4 | Fine putty | 2 mm |
| 5 | Paint, wallpaper, tiles | |
4 mm |
